Many individuals are already creeped out by quadruped robots, which stroll on 4 legs as a substitute of rolling on wheels or tracks. Nicely, the MARVEL robotic doubtless will not do a lot to alter such emotions, as it might probably stroll straight up ferromagnetic metallic partitions.

Its identify an acronym for “Magnetically Adhesive Robotic for Versatile and Expeditious Locomotion,” MARVEL was designed by a group on the Korea Superior Institute of Science and Expertise (KAIST) led by Prof. Hae-Gained Park.

Every of the robotic’s 4 toes incorporate each an electro-permanent magnet (EPM) and a magneto-rheological elastomer (MRE) sole.

In contrast to a standard electromagnet, the EPM requires energy solely to change between magnetic and non-magnetic states – in different phrases, it does not use any energy to take care of its magnetic pressure. The MRE used within the soles is made up of urethane rubber blended with iron particles, leading to a fabric that’s each elastic and ferromagnetic.

To climb up vertical metallic surfaces – and even to stroll upside-down throughout metallic ceilings – MARVEL merely switches the magnetism of its toes on and off because it strikes every one ahead. Whereas the EPMs present all of the enticing pressure, the MRE soles present the grip wanted to maintain the robotic from sliding downwards.

The mixture of the 2 applied sciences permits MARVEL to take care of its place on a metallic wall or ceiling even when an exterior vertical pressure of as much as 54.5 kg (120 lb) or a horizontal pressure of as much as 45.4 kg (100 lb) is utilized. MARVEL itself weighs about 8 kg (18 lb).

KAIST

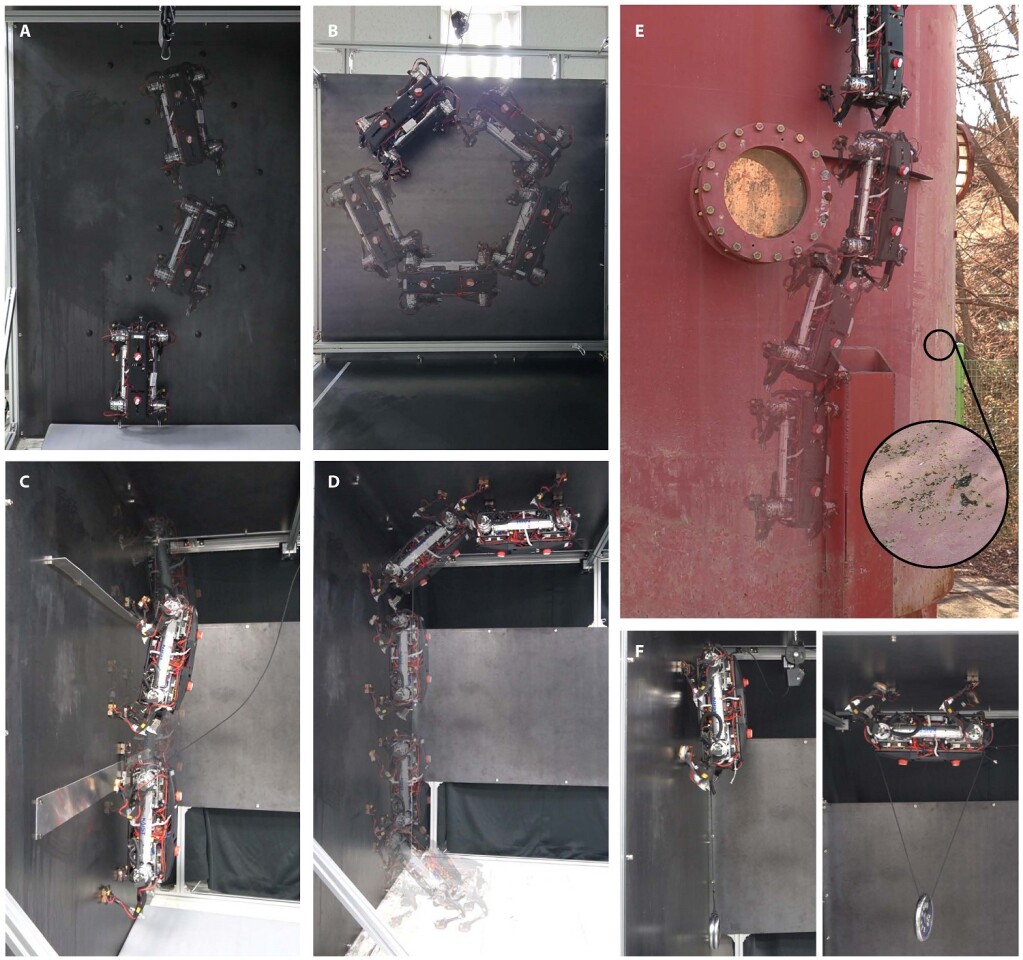

In exams carried out to this point, the robotic was capable of climb partitions at a most velocity of 70 cm (28 in) per second, and to stroll throughout ceilings at as much as 50 cm (20 in) per second. It had no issue transitioning between strolling on flooring, partitions and ceilings, plus it may step over 5-cm (2-in)-tall obstacles.

The latter functionality offers MARVEL a definite benefit over tracked or wheeled wall-climbing robots, which might doubtless be thwarted by such challenges.

Moreover, even when vertical metallic surfaces had been coated in paint, mud or rust, the robotic was nonetheless capable of climb at a price of 35 cm (14 in) per second. This is a vital consideration for its potential real-world purposes, which embrace the inspection, upkeep and/or restore of issues like ships, bridges, radio towers, storage tanks and iron girders at development websites.

“By way of the magnetic soles made up of the EPM and MRE and the non-linear mannequin predictive controller appropriate for climbing, the robotic can speedily transfer via quite a lot of ferromagnetic surfaces together with partitions and ceilings, not simply stage grounds,” mentioned Park. “We imagine this is able to turn into a cornerstone that can increase the mobility and the locations of pedal-mobile robots can enterprise into.”

MARVEL is described in a paper that was lately printed within the journal Science Robotics. The bot will be seen in motion, within the video beneath.
